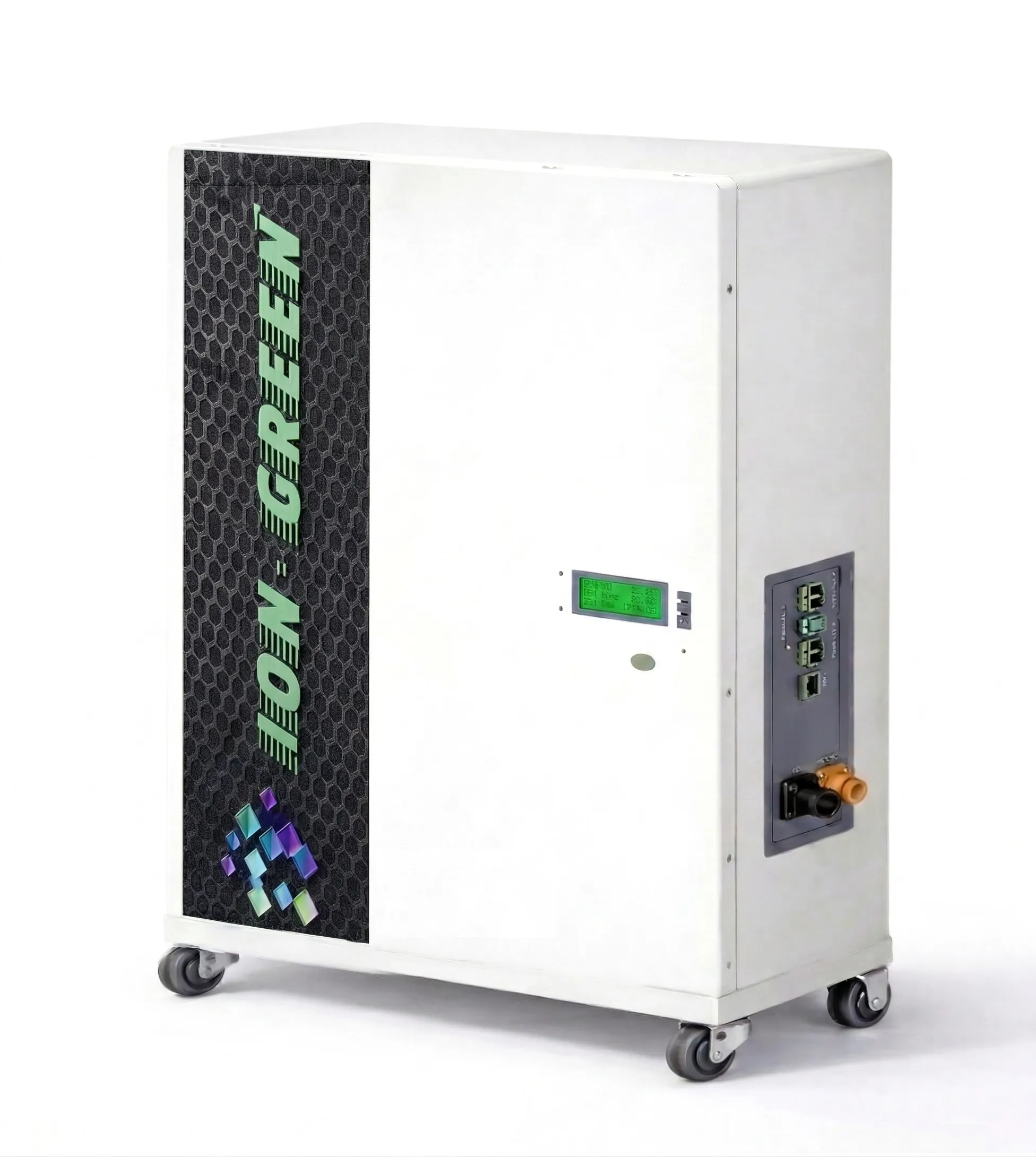

IG-LFP51.2-10.54E Overview
51.2V 206Ah 10.54kWh
IG-LFP51.2-10.54E rack batteries are made from a deep cycle prismatic LiFePO4 battery that combines proprietary architecture, circuitry, assembly methods and battery management systems(BMS) that are modular, light weight and scalable for applications ranging from residential, commercial and industrial. Energy Storage To telecom base station installations.
Key Features
Modular and scalable
16 series 1P
Better price, bigger capacity
10-year warranty & Technical support
30 days delivery period
For on-grid and off-grid
UL standard battery Pack
High cycle life and deep cycle capability
Safe and reliable LiFePO4
Product Information
Residential
Main Product Category
0 Components
Hardware Parts Available
Industrial Grade
Quality Certified
Need More Info?
Contact our experts for detailed specifications, pricing, and integration support for the IG-LFP51.2-10.54E.
Contact SalesComplete Data
Technical Specifications
ModelIG-LFP51.2-10.54E
Battery TypeLiFePO4
Nominal Voltage (V)51.2
Nominal Capacity(kwh)10.54
Usable Capacity (kwh)9.486
Cell＆ Method16S1P
Dimension(mm)(LWH)498*430*234MM
Weight(Kg)80-82 KG
Discharge Voltage(V)40
Charge Voltage(V)57.6
Charge Rate.Current/Power103A/5.2KW
Charge Max.Current/Power206A/10.54kW
Discharging Rate.Current/Power103A/5.2KW @ 0.5C / 206A/10.5Kw @ 1.0C
Discharging Max.Current/Power412A/21.08Kw @30 sec
CommunicationRS232, RS485,CAN,WIFI(Optional),Bluetooth(Optional),HMI
DepthOfDischarge(%)90%
ExpansionUp to 12 units in parallel
Working Temperature Charge0~55℃
Working Temperature Discharge-20~55℃
Storage Temperature0~35℃
Short Circuit Current/ Duration Time618A,Delaytime 500μs
Cooling TypeAir forced
ProtectionLevelIP20
Monthly Self-discharge≤3%/month
Humidity≤60%ROH
Altitude(m)＜4000
Warranty10Years
DesignLife＞15Years（25℃/77℉）
CycleLife＞6000 cycles,25℃
Certification & SafetyStandardUN38.3
