About This Product

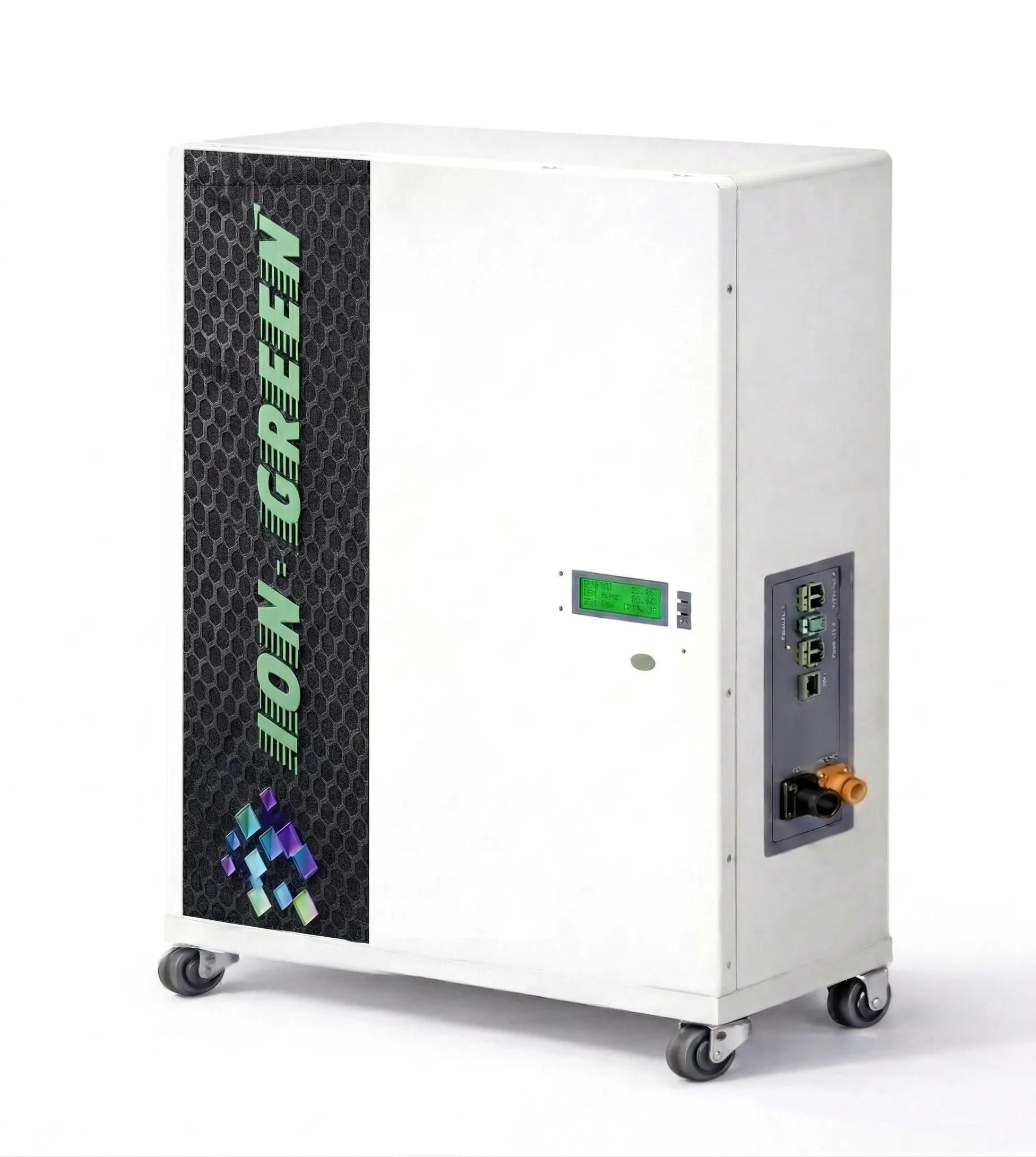

IG-LFP121.6-210E Overview
121.6v 210Ah 25.50kWh
IG-LFP121.6-25.5E rack batteries are made from a deep cycle prismatic LiFePO4 battery that combines proprietary architecture, circuitry, assembly methods and battery management systems(BMS) that are modular, light weight and scallable for applications ranging from residential, commercial and industrial
Energy Storage Totaled combos station installations.
Key Features
Modular and scalable
38 series 14P
Better price, bigger capacity
10-years warranty & technical support
30 days delivery period
For on-grid & off-grid
UL standard battery pack
High cycle life and deep cycle capacity
safe and reliable LiFePO4
Product Information
Residential
Main Product Category
0 Components
Hardware Parts Available
Industrial Grade
Quality Certified
Need More Info?
Contact our experts for detailed specifications, pricing, and integration support for the IG-LFP121.6-210E.
Contact SalesComplete Data
Technical Specifications
ModelIG-LFP121.6-210E
Battery TypeLiFePO4
Nominal Voltage (V)121.6
Nominal Capacity (Wh)25536
Usable Capacity (kWh)22.98
Cell & Method38S14P
Dimensions (mm) (L×W×H)1010 × 4550 × 500
Weight (Kg)200–250
Discharge Voltage (V)106.4
Charge Voltage (V)136.8
Charge Rated Current/Power105A / 12.8 kW
Charge Max Current/Power210A / 25.53 kW
Discharge Rated Current/Power105A / 12.8 kW @ 0.5C / 210A / 25.53 kW @ 1.0C
Discharge Max Current/Power300A / 36.48 kW (30 sec)
CommunicationRS232, RS485, CAN, WiFi (Optional), Bluetooth (Optional), HMI
Depth of Discharge (%)90%
ExpansionUp to 12 units in parallel
Working Temperature (Charge)0 ~ 55°C
Working Temperature (Discharge)-20 ~ 55°C
Storage Temperature0 ~ 35°C
Short Circuit Current / Delay Time400–600A / 500μs
Cooling TypeAir Forced
Protection LevelIP20
Monthly Self-Discharge≤ 3%
Humidity≤ 60% RH
Altitude (m)< 4000
Warranty10 Years
Design Life> 15 Years (25°C / 77°F)
Cycle Life> 6000 cycles @ 25°C
Certification & Safety StandardUN38.3
